JASU one step blow machines include
Injection blow molding machine and injection stretch blow molding machine.

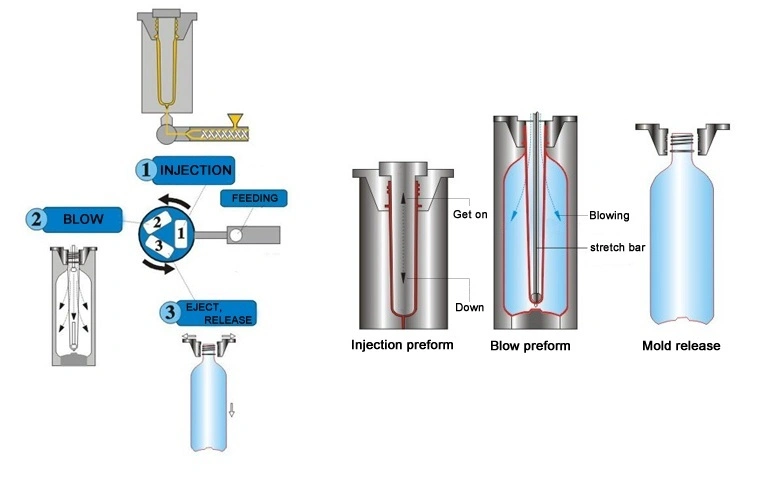

The machines are three stations, injection preform, blow/stretch blow and product release. The raw material comes from the hopper to the injection
screw to inject preform; the plate rotates preforms to blow/stretch blow station with themselves heat, without any reheating for blowing,
Then the product will rotate to release station and drop down, it is fully automatically cycle rotation working mode.
JASU One Step Injection Stretch Blow Molding Machine advantages are as follows:
1. The wheel rotation is driven by electrical servo motor, not hydraulic.
2. Full automatic controlling system, easy operating
3. The temperature of material barrel and hot runner is controlled accurately by PIT.
4. More cost is saved than traditional machine.
5. Compact structure; less space needed
6. Injection: Hot runner and temperature control device are standard configuration. Only change mold for making a new product; Stretch Blow:
Hydraulic mold clamping, core insert, stretch blow and bottom molding are standard configuration;Product Release:Equipped with a standard ejector.
Jasu injection stretch blowing mould
For PC, PS,PMMA lamp cover, LED light lampshade,Christmas flash light, garden and street light.
For PET high transparent,much thinner wall, cosmetic bottle 10ml to 500ml, PET wide neck jar, PET pharmaceutical bottle
For PP high transparent, baby feeding bottle, sport bottle
For PCTG, Tritan drinking water bottle, sport bottle.
Mould and tooling, we have mould workshop ourselves, advanced CNC machine and smart design engineers,we can treat different material and
size products from different customers over the world.
Auxiliary machine,we will equip you with the necessary quality auxiliary machines to ensure the production plan running well,we can supply you one-stop service.
|ISB800-3 Main Specification||Main Devices Brand|
|Material||PC,PP,PET,TRITAN,PMMA,PS||Servo Motor and Oil Pump||Phase (Italy) and Eckerle (Germany)|
|Screw Diameter||40mm||Sealing Parts||Yuken(Japan), TAIWAN|
|Screw L/D Ratio||20.5:1||Hydraulic Valve||Yuken(Japan), TAIWAN|
|Screw Speed||0-190||Air Valve||AirTAC|
|Theoretical Injection cavity||238cm3||Air Cylinder||AirTAC|
|Injection Pressure||174Mp||Controller (PC)||JASU, TAIWAN|
|The actual injection quantity||225g(ps),8Oz||Safety delay||Schneider (ShangHai|
|Screw Stroke||190mm||Servo Motor for Turntable||TECO, Taiwan|
|Blow Clamping Force||80kn||Gear Reducer||SESAME, Taiwan|
|Clamp Tonnage||400kn||Low-voltage components||Joint Venture|
|Wheel Diameter||800mm||Hydraulic hose||China|
|Max.Height Of Bottle||15-220mm||F.R.L||China|
|Open Vertical Mode Trip||570mm||Hydraulic joint||China|
|Max.Pump Pressure||16Mpa||Blowing valve||AirTAC(TaiWan)|
|Servo Motor||22kw||Low-pressure cylinder||AirTAC(TaiWan)|
|Electric power||8.9kw||low-pressure valve||AirTAC(TaiWan)|
|Dimension of Machine||4.2*1.75*3.55m||Air switch||Schneider(Shanghai)|
|Machine Weight||5T||Display screen||JASU(TaiWan)|
Gauangzhou Jasu Precision Machinery Co.Ltd is a sabusidiary of JASU International Machinery Group locates in Guangzhou China, which is top 3 supplier of CNC machine tools in South China. JASU owns R&D center and factories in Guangzhou and Suzhou. JASU has been dedicated to manufacturing machine for 20 years. Absorbing the design and manufacture of Taiwan and Germany, JASU create a series of highly distinctive, automatic and cost-effective one step Injection (Stretch) Blow Molding Machine. JASU has got high reputation and trust among customers by means of modern management method, perfect quality, novel design and reasonable price.
Q1: All of your products are made by your self or compacted via purchasing the others?
A1: We have independent technical team who focus on making machines; all the products are made by our technical team.
Q2: What is the ability of your factory?
A2: About blow molding machine, we could produce 30 sets machine per month
Q3: Do you have any technical supports about your products?
A3: We have had long term collaboration with German, and we have a lot of cooperation with a lot of advanced manufacture company on the world.
Q4: Do you have any other service about your products?
A4: We have a lot of experience on making complete "Turn-Key" projects and specifications for our clients. Also we have a fixed service system
Q5: How do you make the quotation for clients?
A5: The price depends on quality and performance but the clients should be satisfied us at first
